文字版

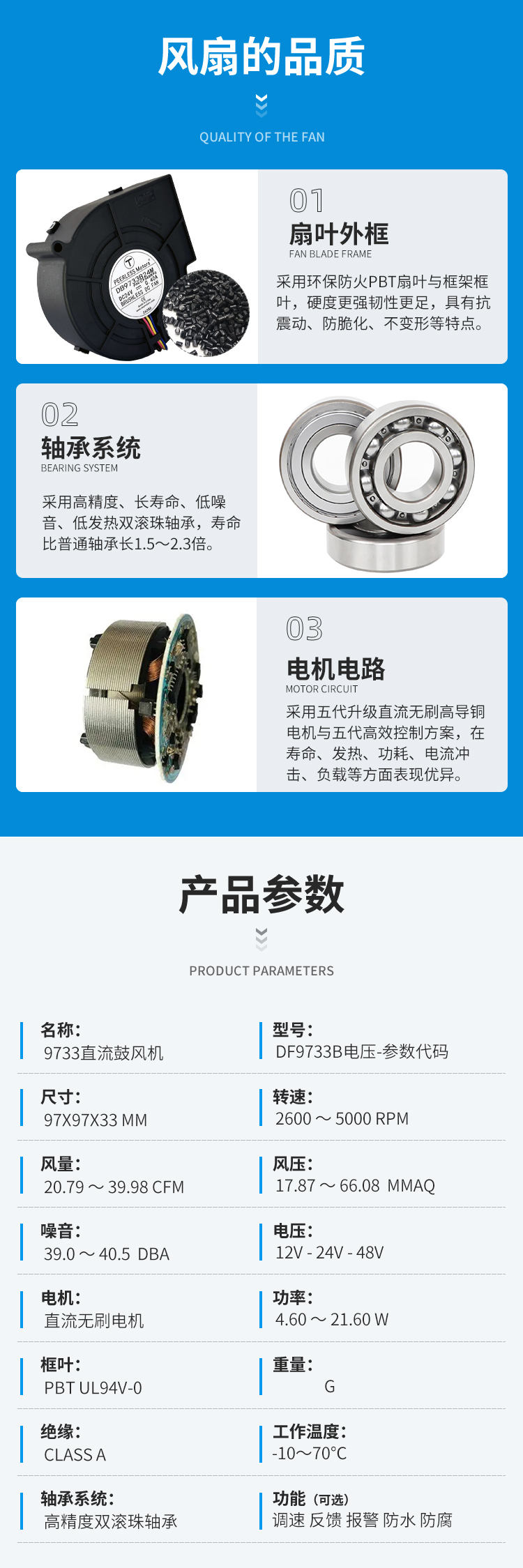

特性：五代升级电机，双滚珠长寿命轴承，PBT环保防火外壳，金属副板增大风道空间

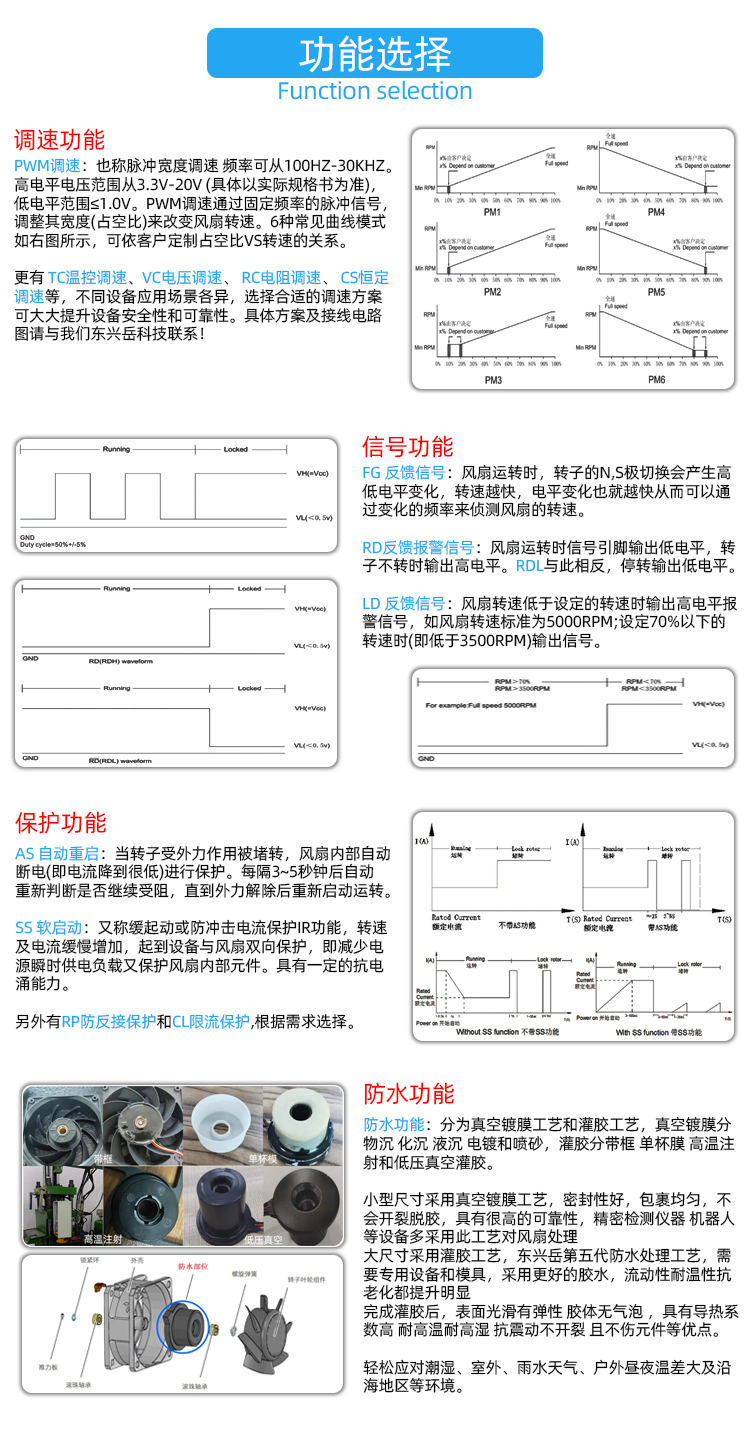

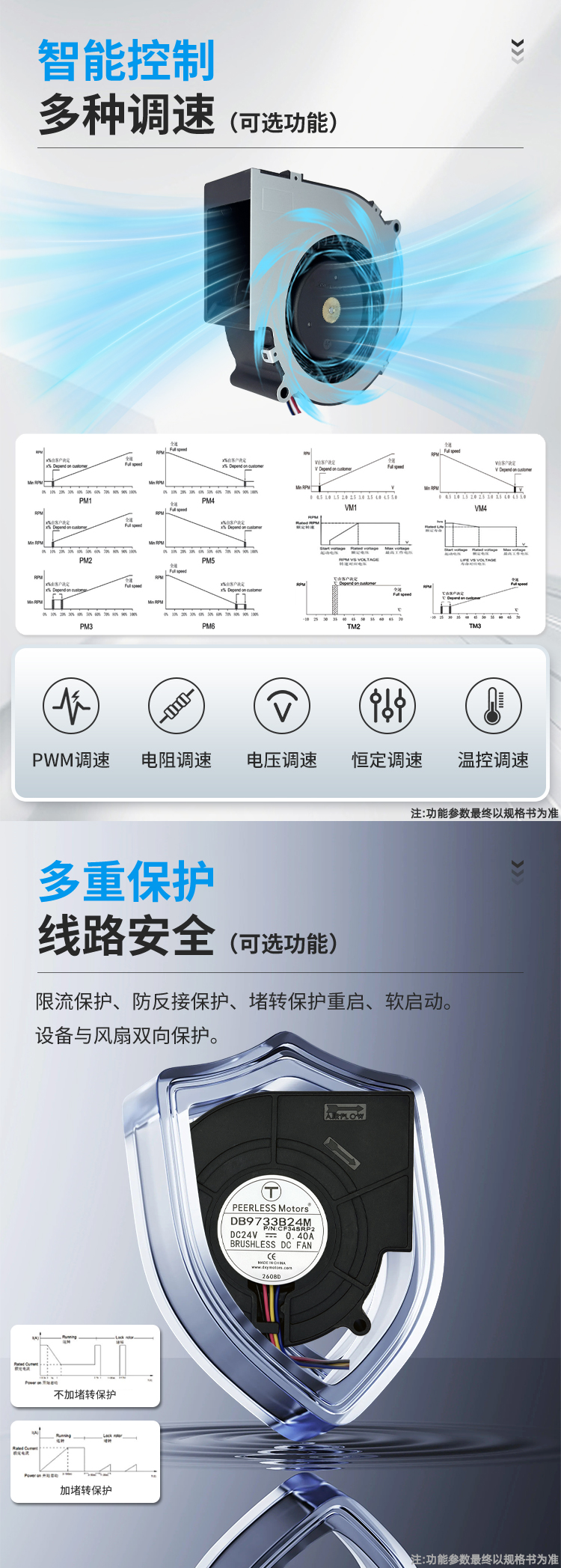

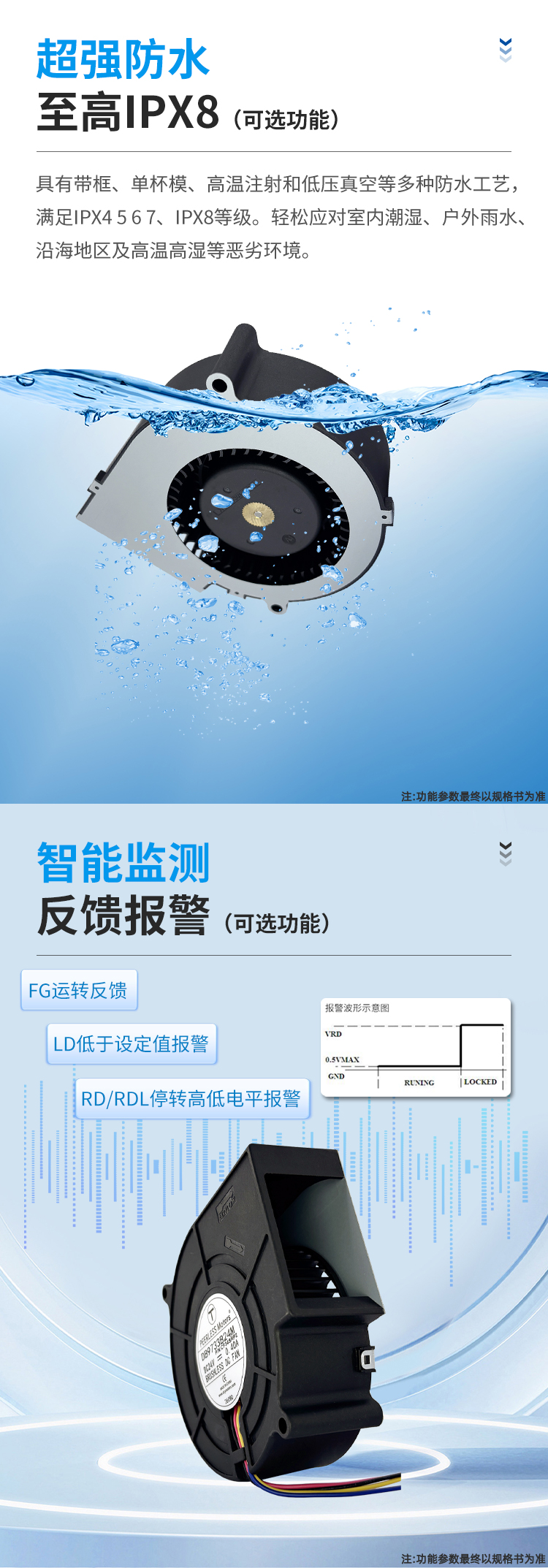

功能：FG运转监测、RD运转高电平报警、RDL运转低电平报警、pwm调速、温控调速、限流保护、防反接保护、堵转保护、软启动、防水防潮

应用：汽车空调系统、净化器、3D打印机、工控机柜、通讯中控、人型机器人、工业机器人、自动化机械等

类型：直流鼓风机、涡轮风扇、涡轮型风扇、涡轮离心风扇

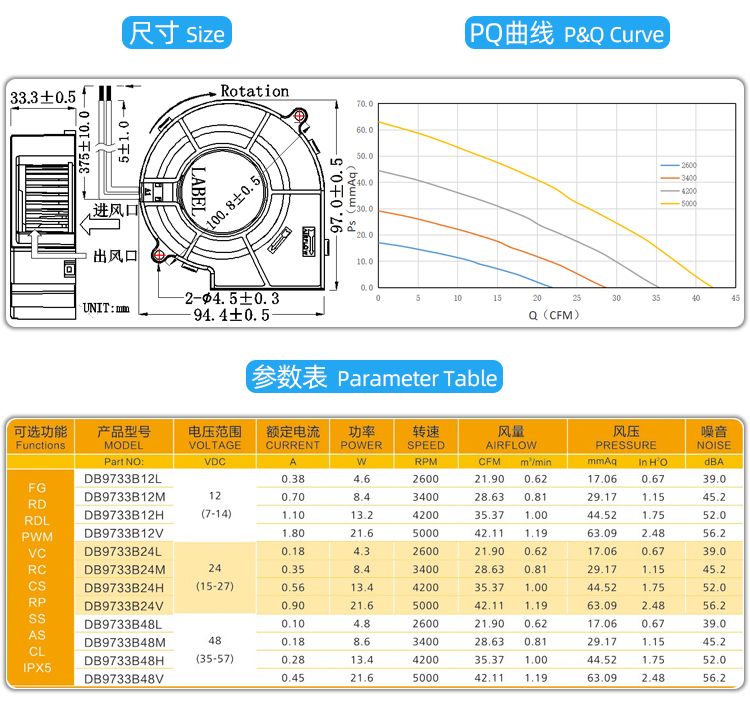

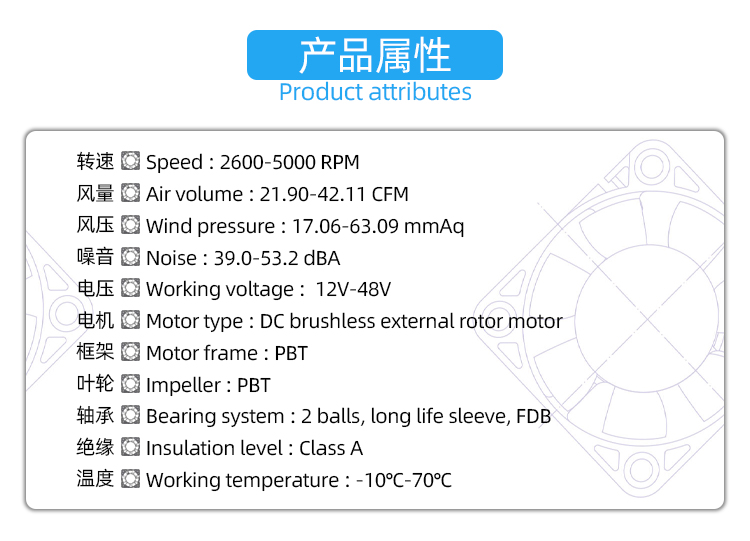

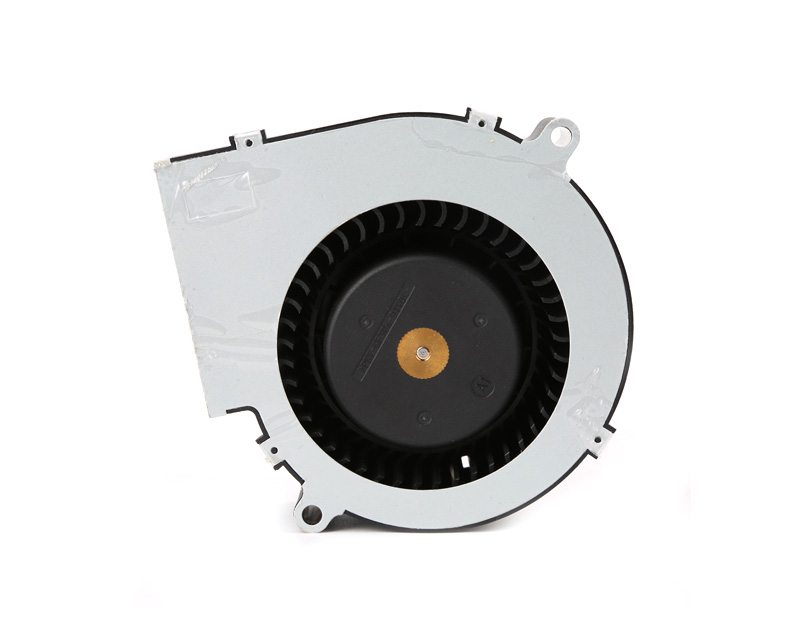

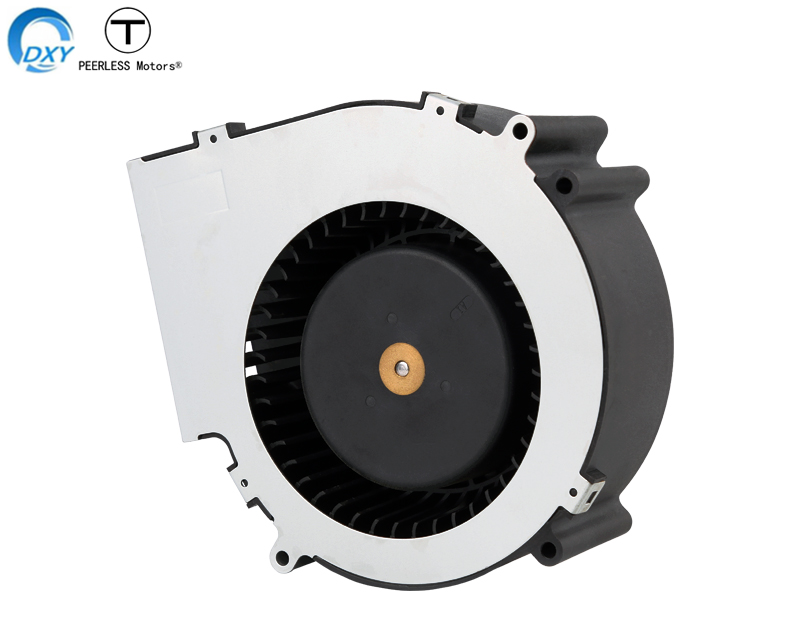

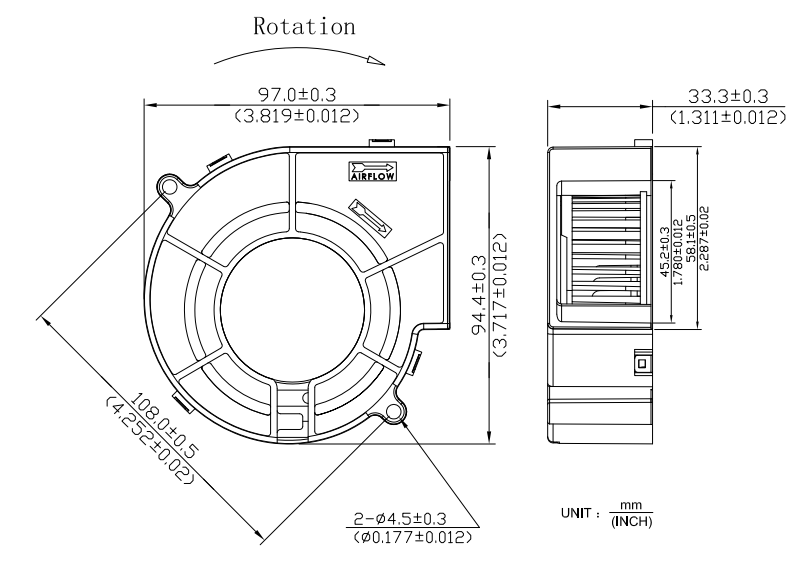

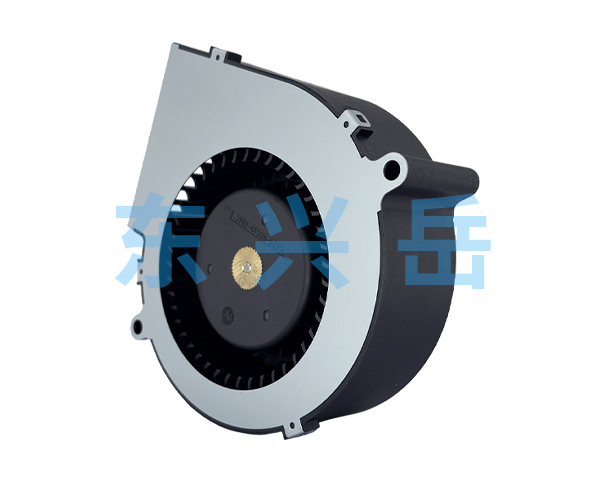

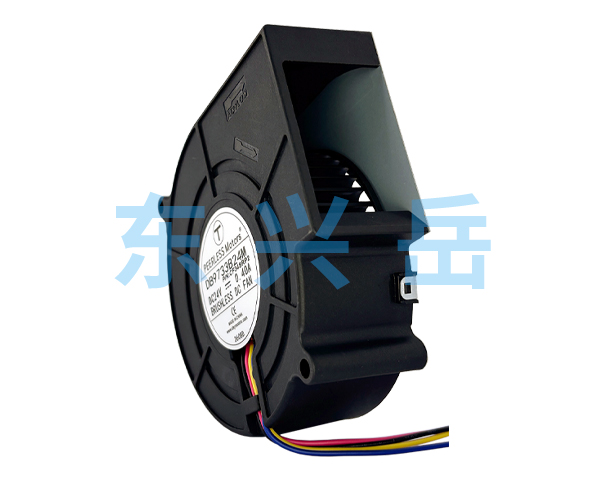

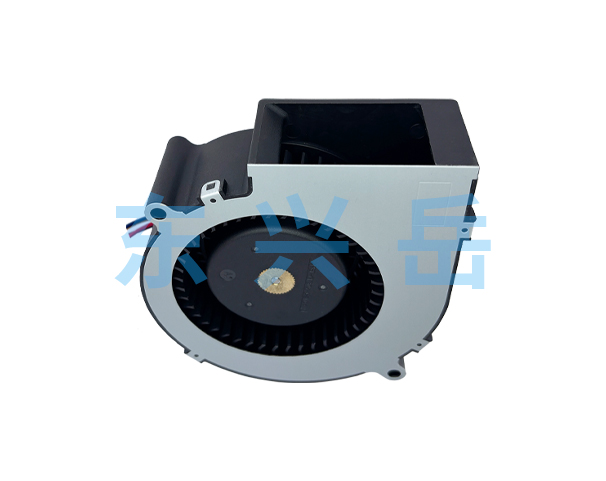

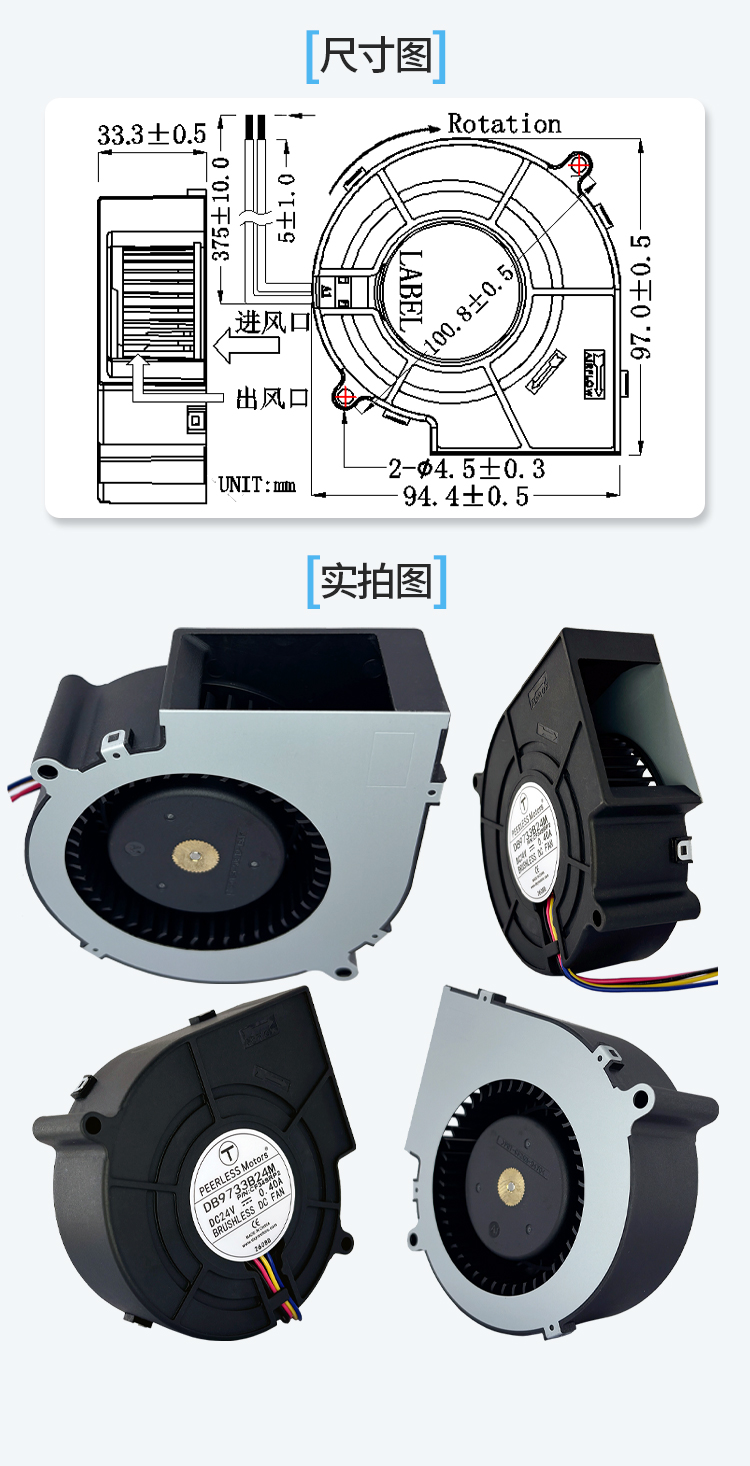

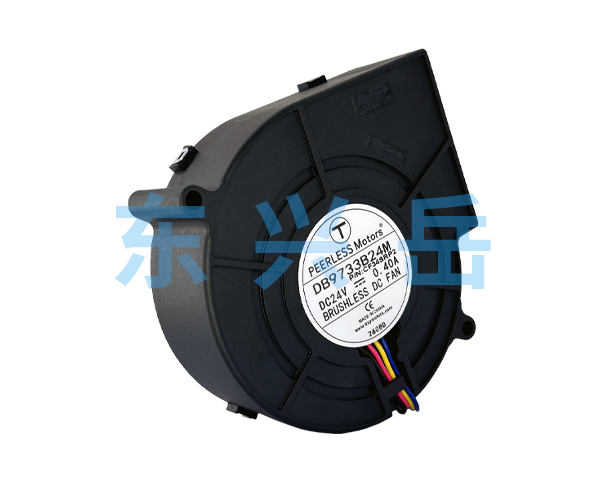

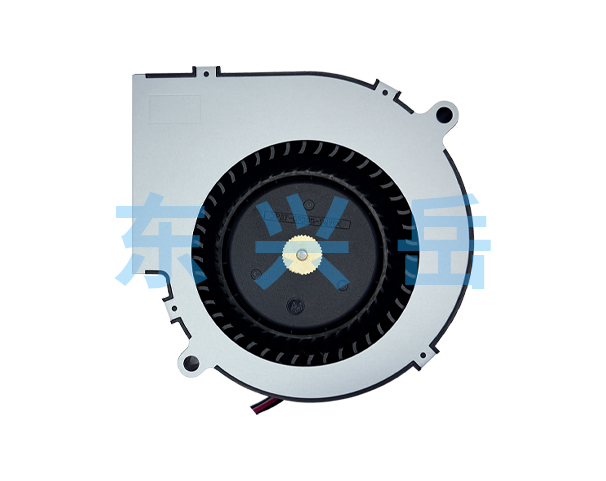

名称：9733直流鼓风机、尺寸：97x97x33MM、电机：五代升级直流无刷电机，

框叶：金属/PBT、轴承：双滚珠轴承、工作温度：-10℃―70℃、重量：168g。

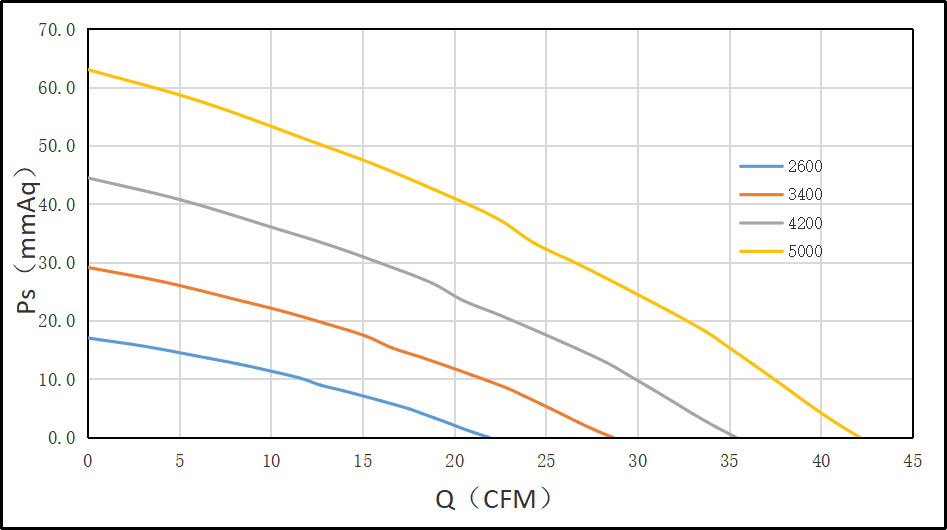

型号DB9733B12L,电压12VDC(7‑14VDC),电流0.38A,功率4.6W,转速2600RPM,风量20.79CFM,风压17.87mmAq,噪音39.0dBA

型号DB9733B12M,电压12VDC(7‑14VDC),电流0.70A,功率8.4W,转速3400RPM,风量27.18CFM,风压30.55mmAq,噪音45.2dBA

型号DB9733B12H,电压12VDC(7‑14VDC),电流1.10A,功率13.2W,转速4200RPM,风量33.58CFM,风压46.62mmAq,噪音52.0dBA

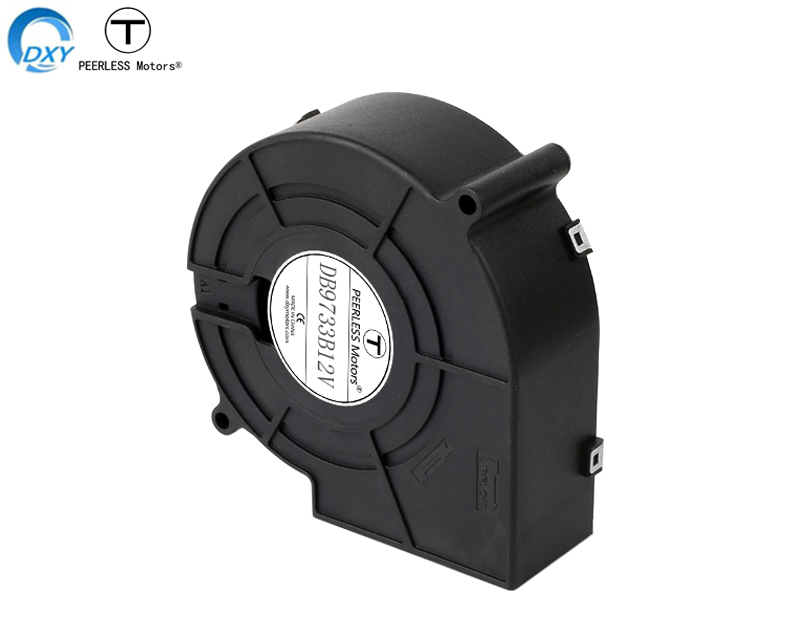

型号DB9733B12V,电压12VDC(7‑14VDC),电流1.80A,功率21.6W,转速5000RPM,风量39.98CFM,风压66.08mmAq,噪音56.2dBA

型号DB9733B24L,电压24VDC(15‑27VDC),电流0.18A,功率4.3W,转速2600RPM,风量20.79CFM,风压17.87mmAq,噪音39.0dBA

型号DB9733B24M,电压24VDC(15‑27VDC),电流0.35A,功率8.4W,转速3400RPM,风量27.18CFM,风压30.55mmAq,噪音45.2dBA

型号DB9733B24H,电压24VDC(15‑27VDC),电流0.56A,功率13.4W,转速4200RPM,风量33.58CFM,风压46.62mmAq,噪音52.0dBA

型号DB9733B24V,电压24VDC(15‑27VDC),电流0.90A,功率21.6W,转速5000RPM,风量39.98CFM,风压66.08mmAq,噪音56.2dBA

型号DB9733B48L,电压48VDC(35‑57VDC),电流0.10A,功率4.8W,转速2600RPM,风量20.79CFM,风压17.87mmAq,噪音39.0dBA

型号DB9733B48M,电压48VDC(35‑57VDC),电流0.18A,功率8.6W,转速3400RPM,风量27.18CFM,风压30.55mmAq,噪音45.2dBA

型号DB9733B48H,电压48VDC(35‑57VDC),电流0.28A,功率13.4W,转速4200RPM,风量33.58CFM,风压46.62mmAq,噪音52.0dBA

型号DB9733B48V,电压48VDC(35‑57VDC),电流0.45A,功率21.6W,转速5000RPM,风量39.98CFM,风压66.08mmAq,噪音56.2dBA
